Description

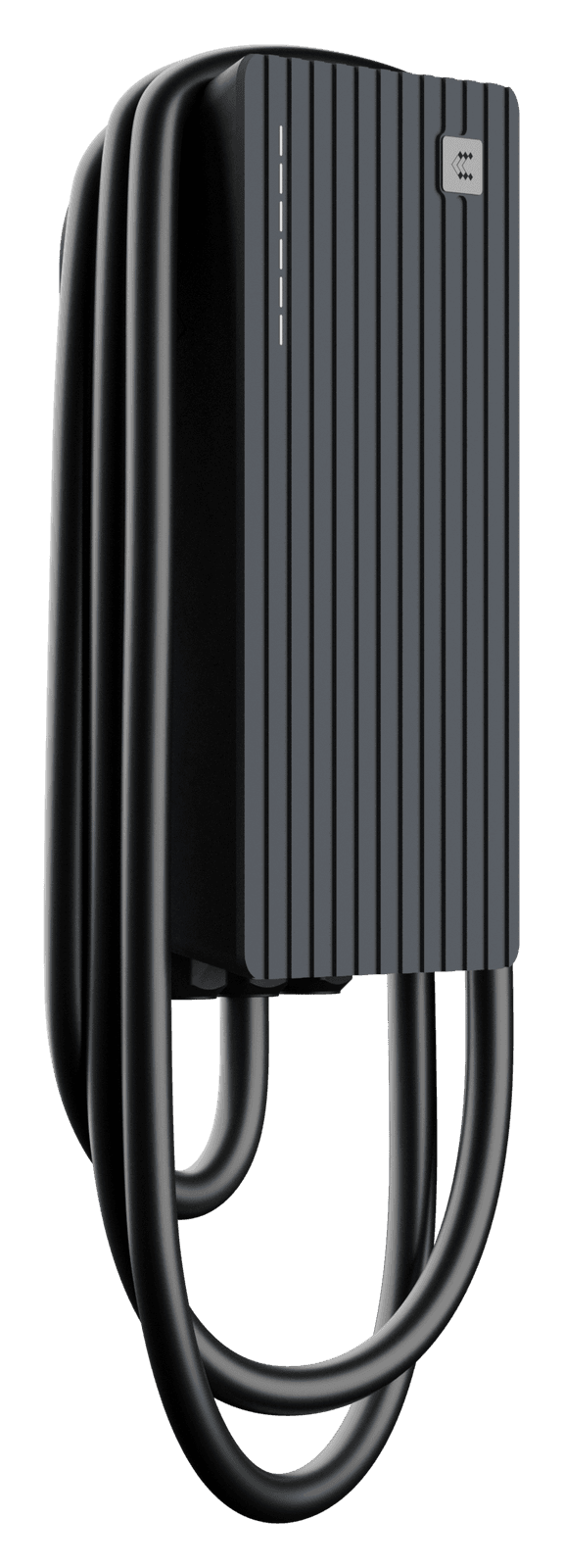

Teltonika TeltoCharge 11 kW with a tethered 5 m Type 2 cable (code EVC111000000) is the most convenient variant for one car at home: the cable always hangs at the station, so when you get back you simply plug in. The power is the same as the socket version – up to 11 kW on three phases (16 A) and up to 3.7 kW on one phase; no GSM modem and no front plate.

A cable instead of a socket

The socket version needs the car's cable from the boot every time; here it stays in the garage and the car's cable is kept for trips. 5 m is enough when the car is parked beside or in front of the station; if the charging port ends up further away, measure the distance before ordering – this code comes with a 5 m cable. The cable and plug are IP54, flame rating UL94 V-0, and the manufacturer states 10,000 plug-in cycles. The front plate for the cable version is a different part from the socket version's – when ordering a plate, state that your station is the cable type.

11 kW for everyday use

16 A on three phases is a moderate load for a three-phase supply, and with an external meter dynamic load management lowers the current further when the cooker or heat pump switches on. On one phase the station gives up to 3.7 kW: if your car charges on one phase only, the same 5 m cable design in the 22 kW version gives up to 7.4 kW. Three-phase charging can be switched off in the app and the phase priority selected.

App, authorisation, solar

It pairs over Bluetooth and connects to the internet over Wi-Fi 2.4 GHz or an Ethernet (RJ45) cable. In the Teltonika Energy app you set the current, a schedule and peak hours, enable authorisation by app or NFC card, and see charging statistics from the built-in meter. OCPP 1.6 JSON lets you manage the station through an operator platform. With a supported meter in the main cabinet the Solar only, ECO and ECO+ modes work.

Installation and safety

The housing is 170 × 94 × 341 mm (without cable), IP56 / IK10, operating from −30 °C to +50 °C. It mounts on a wall at three points or on a TeltoCharge pole (sold separately); the supply cable is 6–7.5 mm², ferrules included. Built-in 30 mA AC / 6 mA DC residual current monitoring; an external Type B residual current device and a circuit breaker are required – neither is in the box. Manufacturer warranty: 36 months from the date of purchase.

Technical specifications

Power

11 kW on three phases (16 A); 3.7 kW on one phase

Current

up to 16 A; reducible from 6 A in the app

Voltage

230 V ±10 % (L-N) / 400 V ±10 % (L-L), 50/60 Hz

Connector

Tethered cable with Type 2 plug (IEC 62196-2), IP54, 10,000 plug cycles

Cable length

5 m

Communication

Wi-Fi 2.4 GHz, Bluetooth LE, NFC, Ethernet RJ45, OCPP 1.6 JSON, Modbus RS-485; no GSM

Features

Dynamic load management, phase balancing, Solar only / ECO / ECO+, NFC authorisation

Protection

30 mA AC / 6 mA DC residual current monitoring; external Type B RCD required (not included)

Operating temperature

−30 °C to +50 °C

Dimensions (W×D×H)

170 × 94 × 341 mm (without cable), IP56 / IK10

In the box

Station with 5 m cable, wall plugs, screws, cable gland, ferrules; no plate or RCD

Warranty

36 months from the date of purchase
