Description

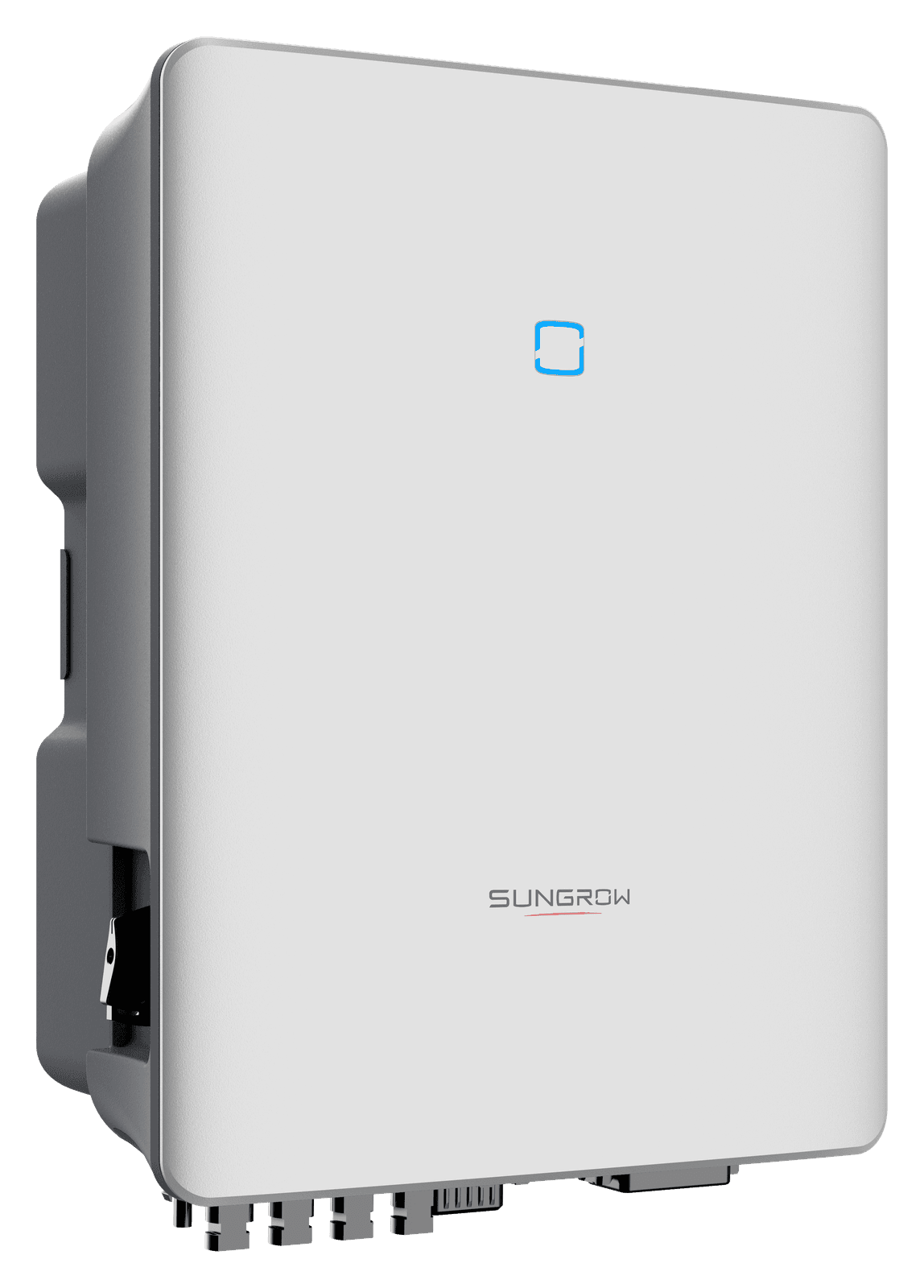

The Sungrow SG15RT-P2 is a 15 kW three-phase grid inverter for a larger home with a heat pump or a small business with a permitted generation capacity of 15 kW. It accepts up to 22.5 kWp of modules in four strings – two on each of the two MPPT inputs – and delivers up to 16.5 kVA, 25 A per phase, into the 3/N/PE 400 V grid. The enclosure is the same as the 10 kW model's (370 × 480 × 195 mm, IP65), weight 22 kg, fan cooling. A battery cannot be connected to this inverter – storage requires a hybrid inverter.

Four strings and 32 A on each input

Both MPPT inputs are identical: two strings each and up to 32 A (40 A short-circuit), but the two strings on one input must have the same orientation and tilt – e.g. two south strings on A, two east strings on B; the inputs may differ. A single MPPT delivers up to 15.5 kW, so a whole array on one roof pitch can be wired to one input. The inverter delivers full power at a string voltage of 380–850 V, so the strings must be longer than with the 10 kW model (320 V); MPPT range 160–1 000 V, maximum voltage 1 100 V.

How it differs from the 10 and 20 kW models

Compared with the SG10RT-P2 – a fourth string, 7.5 kWp more modules, a fan and 4 kg more weight; European efficiency 97.9 % (10 kW – 97.8 %). From the SG20RT-P2 it differs in AC power (15 vs 20 kW, 16.5 vs 22 kVA), output current (25 vs 31.9 A), module power (22.5 vs 30 kWp) and full-power threshold (380 vs 430 V) – the enclosure, weight and strings are the same. When the permitted capacity is above 15 kW, choose the 20 kW model – the string layout stays unchanged.

Communication and control

iSolarCloud app via the included WiNet-S (or WiNet-S2) module in the COM1 port (Wi-Fi or Ethernet); an LED indicator shows the status. For a single inverter, the DTSU666, DTSU666-20 or DTSD1352-C export-limitation meter is wired to the A2/B2 terminals of the COM2 connector with a shielded twisted pair; for several inverters (up to 5) – through a COM100E/D.

Mounting and warranty

The enclosure is fixed with the included bracket; the manufacturer specifies not to install it in bedrooms or other noise-sensitive rooms, nor on a mounting surface that may resonate. The AC connector for ≥15 kW models takes 6–10 mm² cable (5 cord-end terminals in the box), and a 40 A circuit breaker is recommended. Manufacturer warranty under the Sungrow Deutschland GmbH distribution terms – 10 years when installed in EU countries, including Lithuania.

Technical specifications

Power

15 kW rated AC, 16.5 kVA; PV up to 22.5 kWp (150 %)

Phases

Three-phase, 3/N/PE, 230/400 V, 50 Hz

Voltage

PV up to 1 100 V; MPPT 160–1 000 V, full power 380–850 V; start-up 180 V

Current

AC up to 25 A per phase; PV 32 A / 32 A per MPPT, Isc 40 A / 40 A; 16 A per string

Features

2 MPPT, 4 strings (2+2), up to 15.5 kW per MPPT; 98.3 % max (Euro 97.9 %); export control

Communication

Wi-Fi / Ethernet via WiNet-S (COM1), RS485, DI/DO; iSolarCloud app

Protection

IP65, C5; DC switch, AFCI 2.0, PID, type II SPD DC/AC, residual current, anti-islanding

Operating temperature

−25 °C to +60 °C, 0–100 % RH (non-condensing), up to 4 000 m

Dimensions (W×D×H)

370 × 195 × 480 mm

Weight

22 kg

Mounting

Wall bracket (included); smart forced-air cooling

In the box

Inverter, bracket, 4 MC4 pairs, AC connector (≥15 kW), 5 cord-end terminals, COM, WiNet-S/S2

Compatibility

No battery port; DTSU666, DTSU666-20, DTSD1352-C meters; SP600S optimizers

Warranty

10 yr manufacturer (Sungrow Deutschland GmbH terms, ≤20 kW, installed in EU incl. Lithuania)
