Description

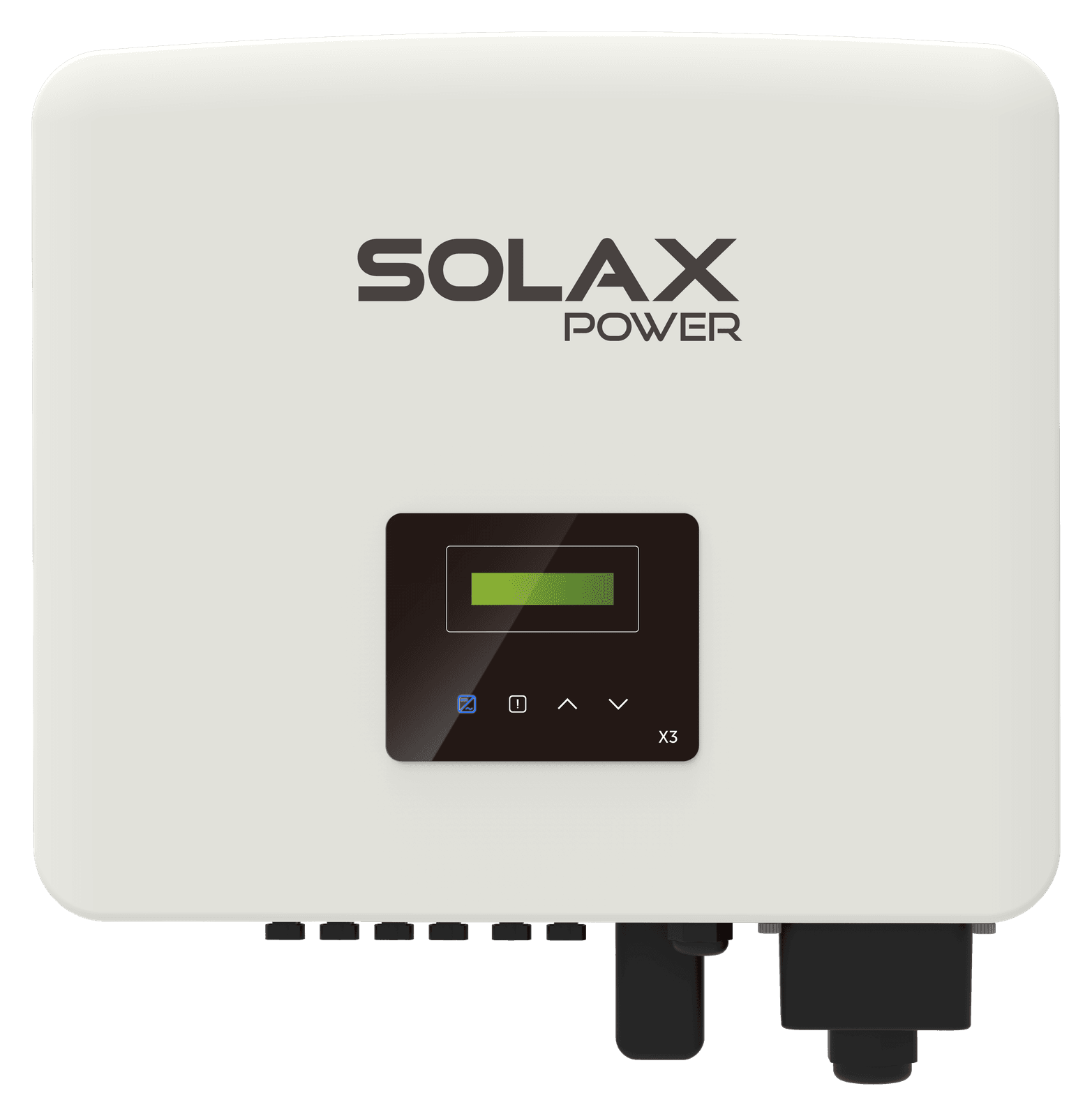

The SolaX X3-PRO-30K-G2 is a 30 kW three-phase grid inverter for a production hall, farm, warehouse or apartment-building roof. Three MPPT inputs with two strings each accept up to 45 kWp of modules (150 % oversizing), and the DC voltage limit is raised to 1 100 V. The unit measures 482 × 186 × 417 mm, weighs 28 kg, is IP66 rated and is wall-mounted outdoors or in a technical room. It is a grid inverter with no battery port.

Six strings and longer circuits

Each of the three MPPTs accepts up to 32 A (short-circuit current up to 40 A) and handles up to 15 kW, so one input takes two strings of the same orientation, while different roof faces go to separate MPPTs. Full power is reached in the 500–850 V range, start-up from 200 V, maximum voltage 1 100 V – strings can be longer than on the 10 kW model. There is no overload margin on the AC side: apparent power equals 30 kVA and rated current is 43.5 A at 400 V, so the cable and breaker are sized exactly for this figure.

How it differs from the MIC 10K

Besides three MPPTs and the higher voltage limit, the PRO series has type II surge protection on both the DC and AC side as standard, a Modbus RTU (RS485) interface for integration into the site's energy management, and higher efficiency – 98.5 % maximum, 98.0 % European. The enclosure is heavier and noise reaches 58 dB, so the inverter is best placed in a technical area rather than next to an office. If the site permit is 10 kW or up to 20 kWp of modules is planned, the X3-MIC-10K-G2 is sufficient.

Control and expansion

With a SolaX meter, export power control works down to zero feed-in. SolaX Cloud monitoring runs through a WiFi, LAN or 4G dongle plugged into the USB port (it is not part of the manufacturer's standard package), and the DRM input is for the grid operator's signal. Several inverters can be connected in parallel through the SolaX DataHub.

Protections, package and warranty

IP66, operation from −30 °C to +60 °C; integrated DC switch, residual current, insulation and polarity monitoring, active anti-islanding; AFCI is optional. CE declaration under the LVD, EMC and RoHS directives. In the box: inverter, wall bracket, 3 wall plugs with screws, 6 pairs of PV connectors, AC terminals, grounding terminal, RJ45 connector and AC cover. Manufacturer's warranty 5 years, upgraded free of charge to 10 years when connected to SolaX Cloud and uploading data.

Technical specifications

Power

30 kW rated AC, 30 kVA; PV up to 45 kWp (150 %)

Phases

Three-phase, 3/N/PE, 230/400 V, 50/60 Hz

Voltage

PV up to 1 100 V; MPPT 160–980 V, full load 500–850 V; start-up 200 V

Current

AC 43.5 A rated (400 V), up to 45.5 A; PV 32 A per MPPT, Isc 40 A

Features

3 MPPT with 2 strings each (6 strings), up to 15 kW per MPPT; efficiency 98.5 % (Euro 98.0 %); export control

Communication

Meter, USB (WiFi / LAN / 4G dongle separate), Modbus RTU (RS485), DRM; SolaX Cloud

Protection

IP66; type II SPD DC and AC standard; DC switch, RCD, anti-islanding; AFCI optional

Operating temperature

−30 °C to +60 °C, 0–100 % RH, up to 4 000 m

Dimensions (W×D×H)

482 × 186 × 417 mm

Weight

28.0 kg (gross 32 kg)

Mounting

Wall-mounted, bracket included; smart fan, < 58 dB; < 3 W at night

In the box

Inverter, bracket, wall plugs, 6 pairs of PV connectors, AC terminals, grounding terminal, RJ45, AC cover

Compatibility

No battery port; parallel operation via DataHub; EN 50549, VDE-AR-N 4105, CEI 0-16/0-21

Warranty

5 yr manufacturer's; free upgrade to 10 yr when connected to SolaX Cloud
